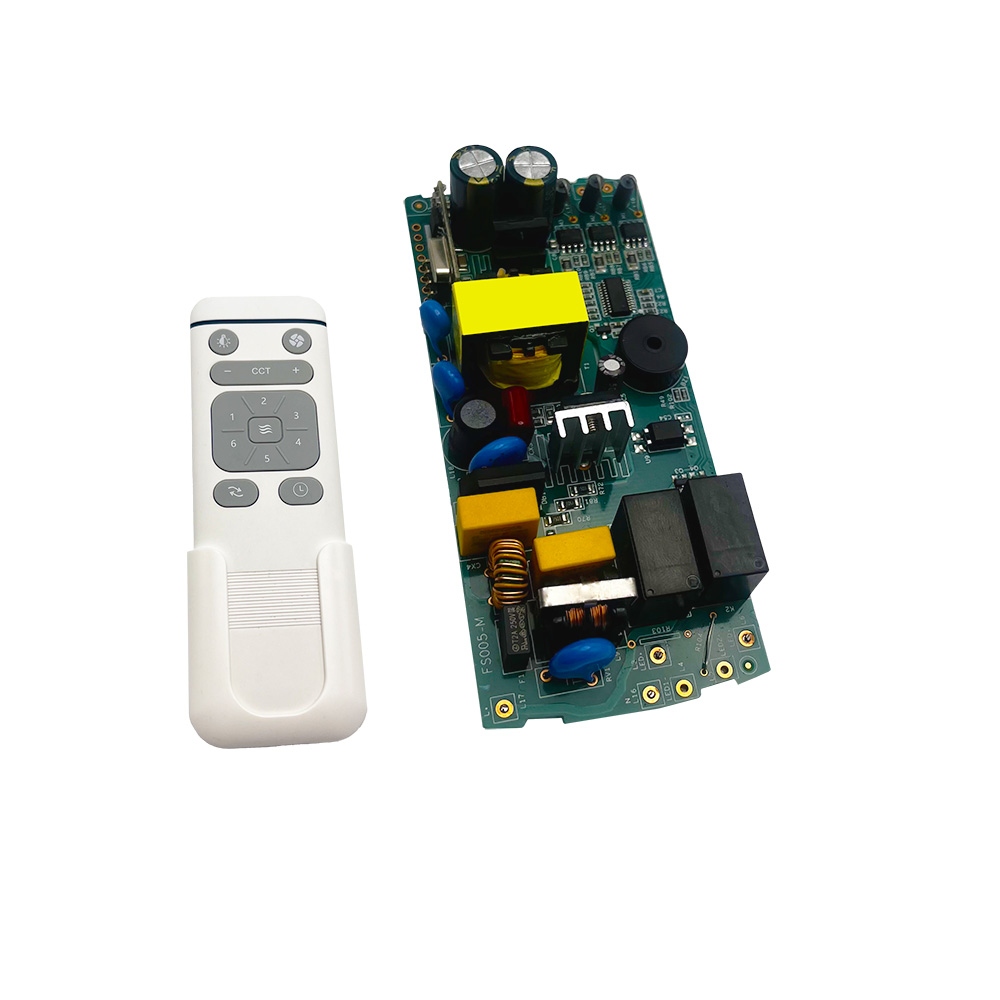

| Model | Basic Type | FS004（433+1/2 channel relay） |
|
| 1 | Input | PSU controller | 100--240Vac 50/60Hz |
| 2 | Remote control | P/N | Support remote
control. The outline can be defined by customers |
| 3 | PSU controller | P/N | 00010-00
The label can be printed on the plastic cover according to customer's
requirement. |
| 4 | Lighting | 4.1 Colour
temperature | No support (N.A.) |
| 4.2 Brightness | Brightness 100% with
default lights |
| 4.3 Dimming | No support (N.A.) |
| 4.4 External LED Driver | 2
channels relay control |
| 5 | Fan | 5.1
Type-86 switch | Default
fan speed is in gear 3. The gear of fan running speed is remembered when AC
power is off. |
| 5.2 Gear / Scale | Scale
1-2-3-4-5-6 Operation scale is
automatic memory |
| 5.3 Forward and Reversed | Support
forward or reversed fan operation. The
operation direction is automatic memory. |
| 5.4 Timer | 1H,2H,4H without
automatic memory or defined by customers |
| 5.5 Pivoting / Air anion | Support fan pivoting
and air-anion. |
| 5.6 Brushless Motor | DC 24V brushless
motor, 35W Maximum |
| 6 | Communication | 6.1
Frequence | SUB-1G, 433MHz / 868MHz |
| 6.2 Distance | 10 meters |
| 8 | Outline | PSU
controllor outline | PSU controller can be
designed according to customer's requirements defined. |
| 9 | Safety and EMC | Comply with FCC, UL,
CE, CCC standard or other standards |
|
