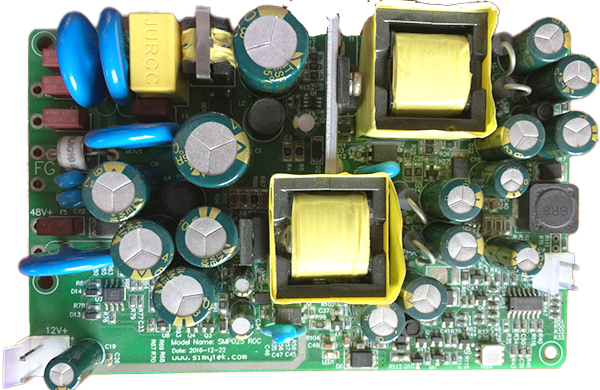

| Product Name: SMP025 |
| Application range: communication appliances |
| Product Features: |
| ► Universal AC Input / Full Range 90--264Vac / 30--60Vdc from solar panel. AC and DC inputs can be entered simultaneously. |
| ► Operating temperature: -40℃~85℃ |
| ► LED1 RGB 5050 for AC input,DC input and the battery operating status indicator |
| ► Output1 12.6V 2Adc for lithium-ion battery |
| ► Output2 12V 2Adc for communication devices |
| ► Protections Mode: OVP, OCP, Overload / Short Circuit, OTP |
| ► Double Insulation, High Insulation Voltage Ensure Safety Usage. |
| ► 3 Years Warranty |
| Electrical Parameter | Environment & Safety Specification | ||
| Input Voltage Range | 90-264Vac / 30--60Vdc | Operating Temperature | -40℃~85℃ |
| Input Frequency | 50/60Hz | Storage Temperature | -40℃~ 85℃ |
| Turn on Delay(s) | <3 | Storage Humidity | 5~95% |
| Rated Output Voltage / Current | Output1: 12.6Vdc/2.0A Output2: 12V 2.0A | Cooling Mode | Natural Cooling |
| Output Voltage Tolerance | <±5% | MTBF | ≧100,000Hrs @25°C (Telcordia SR-332) |
| Dynamic Overshoot | <±5% | Surge Voltage | CM:±2kV, DM: ±2kV; |
| Ripple and Noise (Vpp) | <120mV | Insulation Voltage | 3KVac @ Primary v.s. Secondary |
| Efficiency (%) | >83% | Insulation Resistance | >10Mohm @ Primary v.s. Secondary @ 500Vdc |
| Rise Time | <200mS | Safety Mark & Standards Complicance | EN60950, CB, CE, TUV, UL&cUL |
| Hold up Time | >10mS | EMC & EMI Standards Complicance | FCC Part 15 Class B; CISPR 22 |
| Protection Function | OVP, OCP, OLP, SCP, OTP | Dimension (L*W*H) mm | 135*85*22 |
