SMP150 12V 10A 15V10A 18V8.33A 20V 7.5A 24V 6.25A
Product Name: SMP150 open frameApplication range: Home appliancesProduct Featur.

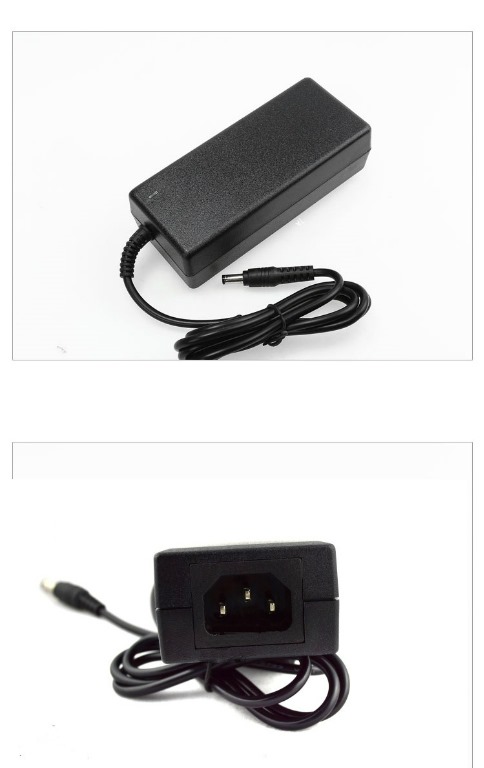

| Product Name:SMP060 | Model List: |
| Application range: Household Appliances | SMP060050800 5V 8A |
| Product Features: | SMP060120500 12V 5A |
| ► Universal AC Input / Full Range | SMP060150400 15V 4A |
| ► 60W Constant Voltage Circuit | SMP0601800334 18V 3.34A |
| ► Protections Mode: OVP, OCP and SCP | SMP0602000300 20V 3.0A |
| ► Light Weight, Small Volume | SMP0602400250 24V 2.5A |
| ►High Reliability, MTBF > 100Khrs | SMP0604800150 48V 1.25A |
| ► Compliance with Energy level VI | |
| ► 2 Years Warranty |
| Electrical Parameter | Environment & Safety Specification | ||
| Input Voltage Range | 90-264Vac | Operating Temperature | 0℃~45℃ |
| Input Frequency | 50/60Hz | Storage Temperature | -20℃~ 85℃ |
| Inrush Current | <50A | Storage Humidity | 5~95% |
| Hold up Time | >10mS | Cooling Mode | Natural Cooling |
| Turn on Delay(s) | <3 | MTBF | ≧100,000Hrs @full load |
| Rated Output Voltage | 48Vdc Max. | Surge Voltage | ±1KV |
| Max. Output Current | 8.0A Max. | Insulation Voltage | 3KVac @ Primary v.s. Secondary |
| Output Voltage Tolerance | <±5% | Insulation Resistance | >10Mohm @ Primary v.s. Secondary @ 500Vdc |
| Ripple and Noise (Vpp) | <300mV | Leakage Current | <250uA |
| Efficiency (%) | >88% (Energy level VI) | Safety Mark & Standards Complicance | UL, FCC, IEC60950, UL60950 |
| Static Loss | <0.1W | EMC & EMI Standards Complicance | FCC Part 15 Class B; EN55032 |
| Protection Function | OVP, OCP, SCP | Dimension (L*W*H) mm | 110*46.5*31.5mm |
