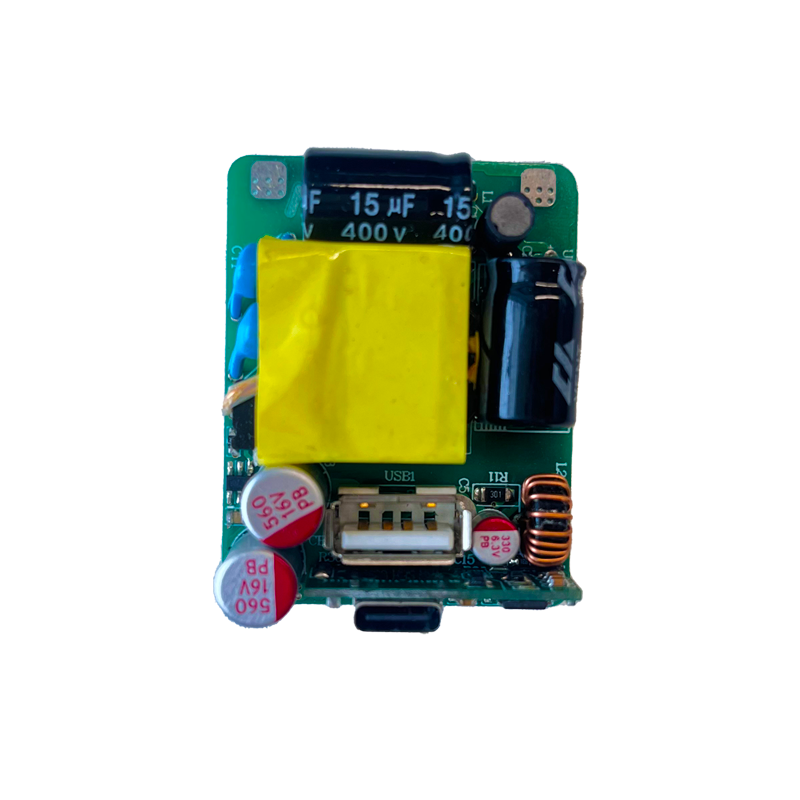

SMP020USB-C 5V 3A, 9V 2A, 12V 1.5A
| Product Name:SMP020USB-C |
| Application range: Type-C USB charger |
| Product Features: |
| ► Universal AC Input / Full Range |
| ► Double USB output,USB Type-A 5V 2.4A, USB Type-C 5V 3A, 9A 2A,12V 1.5A Total 20W (A+C) |
| ► Protections Mode: OVP, OCP,OTP and SCP |
| ► Light Weight, Small Volume |
| ►High Reliability, MTBF > 100Khrs |
| ► Compliance with Energy level VI |
| ► 2 Years Warranty |
| Electrical Parameter | Environment & Safety Specification | ||
| Input Voltage Range | 90-264Vac | Operating Temperature | 0℃~45℃ |
| Input Frequency | 50/60Hz | Storage Temperature | -20℃~ 85℃ |
| Inrush Current | <50A | Storage Humidity | 5~95% |
| Hold up Time | >10mS | Cooling Mode | Natural Cooling |
| Turn on Delay(s) | <3 | MTBF | ≧100,000Hrs @full load |
| Rated Output Voltage | USB Type-A: 5V 2.4A Max. USB Type-C: 5V 3A, 9V 2A, 12V 1.5A Total 20W (A+C) | Surge Voltage | ±1KV |
| Max. Output Current | 3.0A Max. | Insulation Voltage | 3KVac @ Primary v.s. Secondary |
| Output Voltage Tolerance | <±5% | Insulation Resistance | >10Mohm @ Primary v.s. Secondary @ 500Vdc |
| Ripple and Noise (Vpp) | <100mV | Leakage Current | <250uA |
| Efficiency (%) | >82.5% (Energy level VI) | Safety Mark & Standards Complicance | UL, FCC, IEC60950, UL60950 |
| Static Loss | <0.075W | EMC & EMI Standards Complicance | FCC Part 15 Class B; EN55032 |
| Protection Function | OVP, OCP, SCP,OTP | Dimension (L*W*H) mm | 48*38*15mm |
