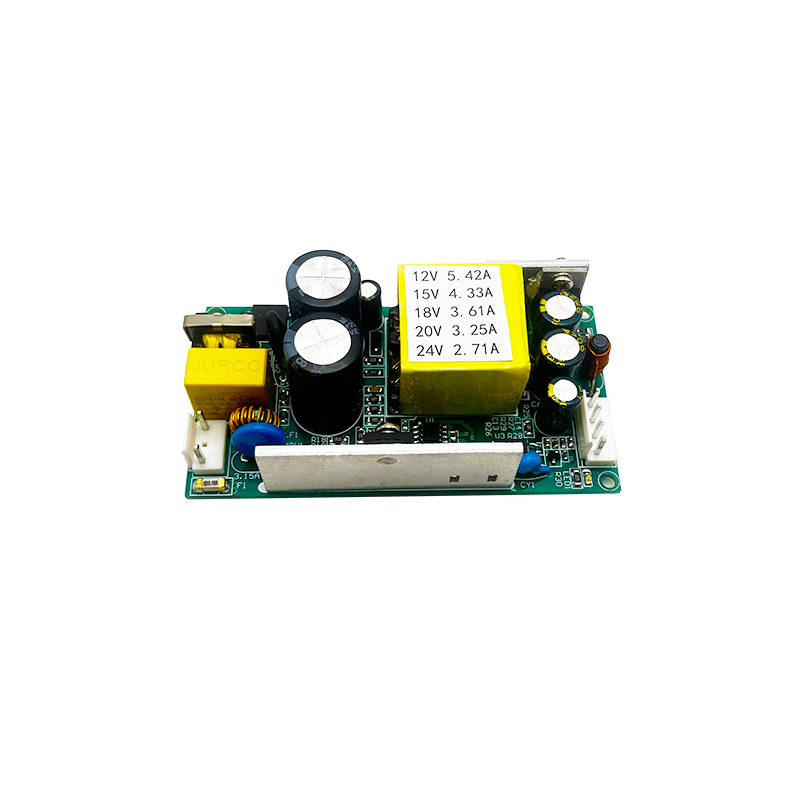

SMP065 12V 5.42A 15V4.33A 18V3.61A 20V 3.25A 24V 2.71A

Consultation National hotline
13724264502

Detailed

Product Name: SMP065

Application range: Home appliances

Product Features:

► Universal AC Input / Full Range 90--264Vac, Output: 65W

► Built-in Constant Voltage Circuit, Output: 12V 5.42A, 15V 4.33A, 18V 3.61A ,20V 3.25A 24V 2.71A

► Protections Mode: OVP, OCP, Overload / Short Circuit, OTP

► Double Insulation, High Insulation Voltage Ensure Safety Usage.

► High Efficiency and Low Noise Characteristics

► 2 Years Warranty

Electrical Parameter		Environment & Safety Specification
Input Voltage Range	90-264Vac	Operating Temperature	-40℃~65℃
Input Frequency	50/60Hz	Storage Temperature	-40℃~ 70℃
Turn on Delay(s)	<3	Storage Humidity	5~95%
Rated Output Voltage / Current	12V 5.42A, 15V 4.33A, 18V 3.61A ,20V 3.25A, 24V 2.71A	Cooling Mode	Natural Cooling
Output Voltage Tolerance	<±5%	MTBF	≧100,000Hrs @25°C (Telcordia SR-332)
Dynamic Overshoot	<±5%	Surge Voltage	CM:±2kV, DM: ±2kV;
Ripple and Noise (Vpp)	<120mV	Insulation Voltage	3KVac @ Primary v.s. Secondary
Efficiency (%)	>89%	Insulation Resistance	>10Mohm @ Primary v.s. Secondary @ 500Vdc
Rise Time	<200mS	Safety Mark & Standards Complicance	EN60950, CB, CE, TUV, UL&cUL
Hold up Time	>10mS	EMC & EMI Standards Complicance	FCC Part 15 Class B; CISPR 22
Protection Function	OVP, OCP, OLP, SCP, OTP	Dimension (LWH) mm	955025
