SMP150 12V 10A 15V10A 18V8.33A 20V 7.5A 24V 6.25A
Product Name: SMP150 open frameApplication range: Home appliancesProduct Featur.

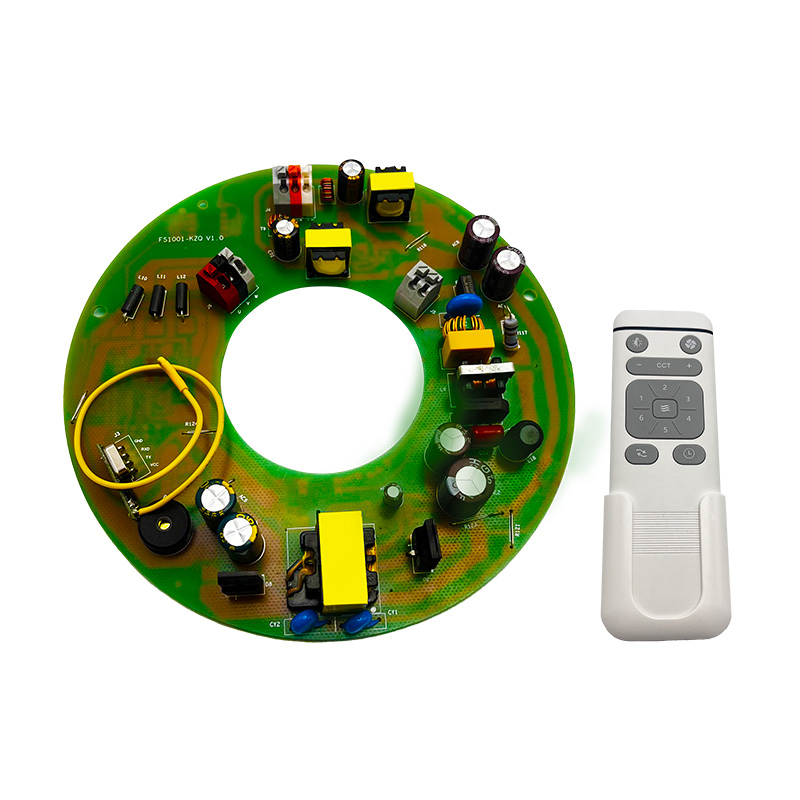

| Model | Cloud Connect | FS1001（WiFi+SUB-1G 433+1/2 channel constant current） | |
| 1 | Input | PSU controller | 100--240Vac 50/60Hz |
| 2 | Remote Control | Part number | 00006-00 Support remote control. The outline can be defined by customers |
| 3 | PSU Controller | Part number | FS1001-KZQ The label can be printed on the plastic cover according to customer's requirement. |
| 4 | Lighting | 4.1 Colour Temperature | Stepless colour temperature control |
| 4.2 Type-86 switch | Brightness 100% with default yellow & white light. Support type-86 switch control | ||
| 4.3 Dimming | Brightness range, 10%-100% .Support sleeping light. | ||
| 4.4 LED Driver power rated | 2 non-isolated constant current outputs，one channel output 24W Max. Two channel outputs 24W Max. | ||
| 5 | Fan | 5.1 Type-86 switch | Default fan speed is in gear 3. The gear of fan running speed is remembered when AC power is off. |
| 5.2 Gear / Scale | Scale 1-2-3-4-5-6 Operation scale is automatic memory | ||
| 5.3 Forward and Reversed | Support forward or reversed fan operation. The operation direction is automatic memory. | ||
| 5.4 Timer | 1H,2H,4H without automatic memory or defined by customers | ||
| 5.5 Natural wind | Option, No support or support | ||
| 5.6 Brushless Motor | DC 24V brushless motor, 35W Maximum | ||
| 6 | Communication | 6.1 Frequence | WiFi+SUB-1G, or SUB-1G, 433MHz / 868MHz |
| 6.2 Distance | 10 meters | ||
| 7 | APP | APP | Option,No suppport or Tuya |
| 8 | Outline | PSU controllor outline | PSU controller can be designed according to customer's requirements defined. |
| 9 | Safety and EMC | Comply with FCC, UL, CE, CCC standard or other standards |
